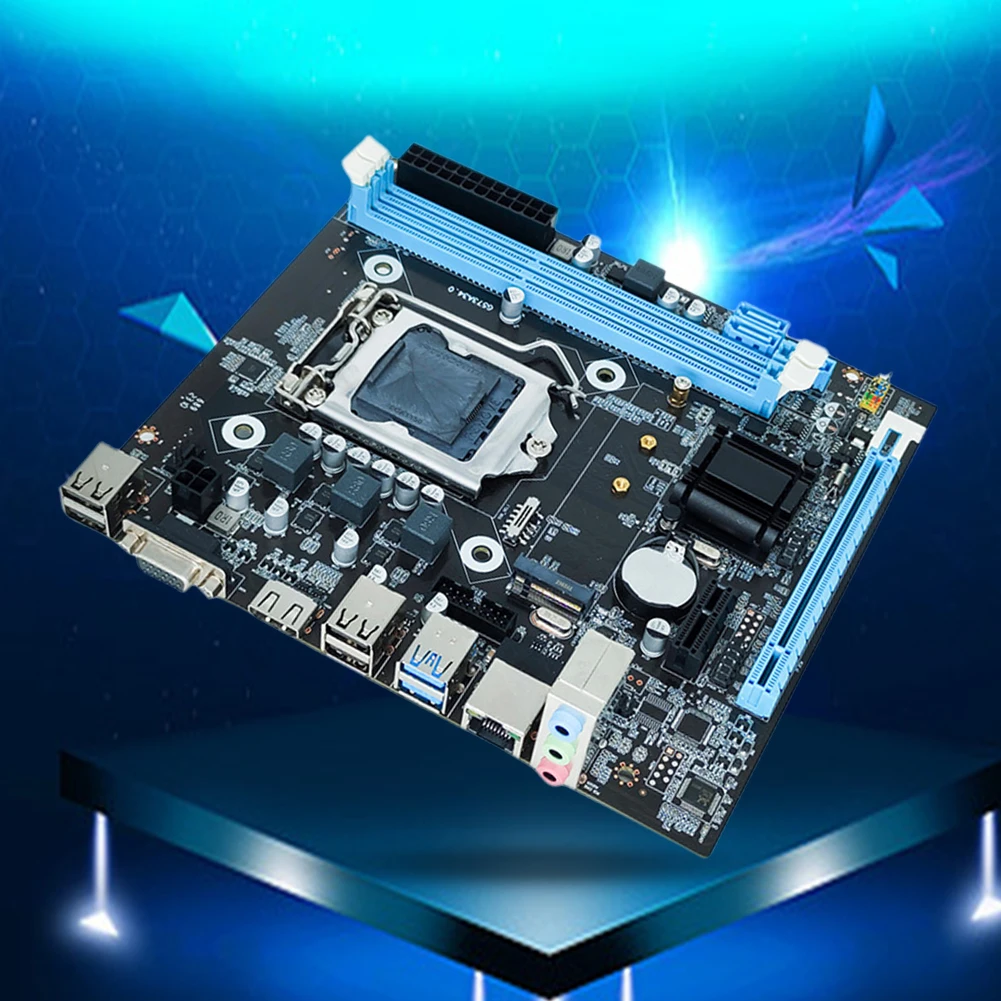

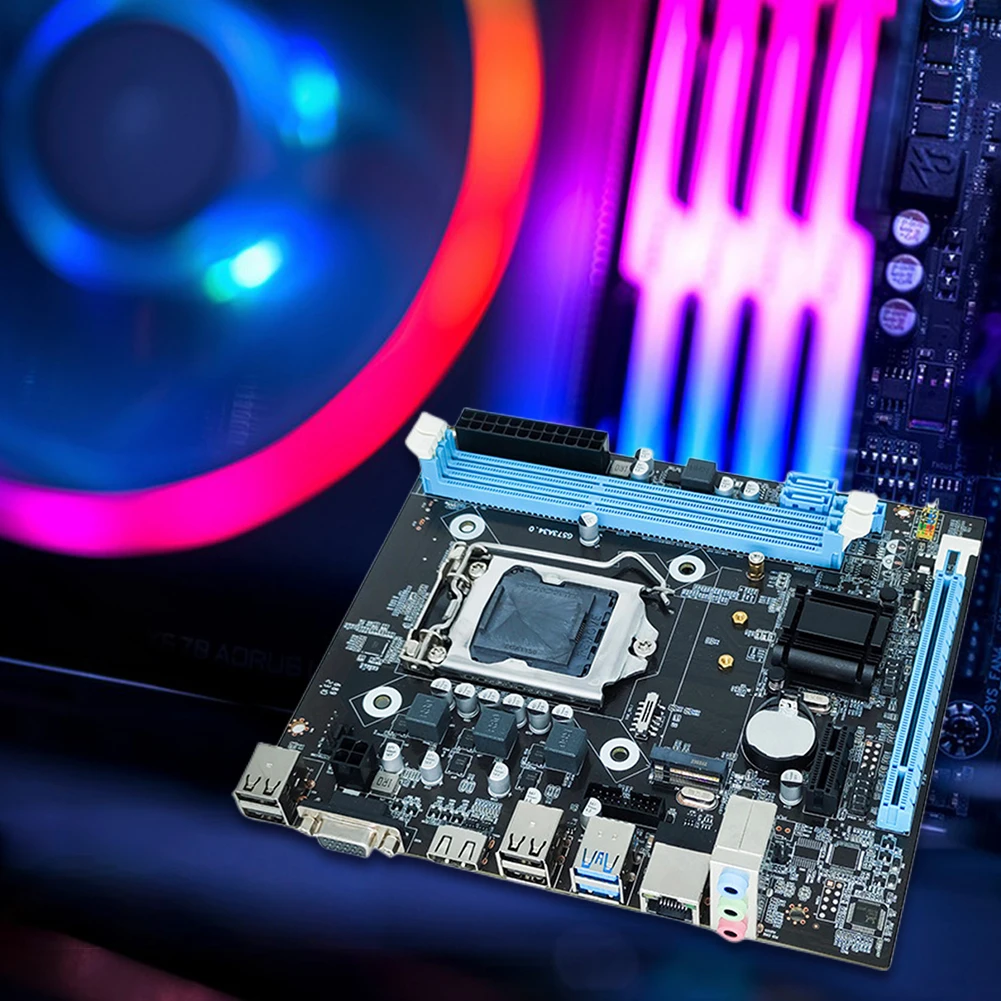

H81 Motherboard DDR3 LGA 1150 RAM 16GB Support I3 I5 I7 Nvme NGFF M.2 Slot VGA HDMI-Compatible RJ45 Gaming Mainboard Placa Mae
20 in stock
120,00 د.إ 353,70 د.إ
- RAID Supported: no
- Processor compatibility: Intel Pentium
- Usage Scenario: Household
- Special Function: none
- Back I/O Ports: COM
- Support USB Type: USB 2.0,USB 3.0
- Onboard LAN: 1x RJ45
- Number of M.2: 1
- Number of SATA Ports: 4
- Storage Interface Type: SATA
- Number of PCI: 2
- Number of PCIe x 1: 1
- Number of PCIe x 4: 0
- Number of PCIe x 8: 0
- Number of PCIe x 16: 1
- PCI – E standards: PCI – E 3.0
- Number Of Memory Slots: 2
- Support Memory Type: DDR3
- Quality Certification: none
- Memory channel: Double
- Package: Yes
- Maximum Ram Capacity: 16GB
- Form Factor: Micro-ATX
- Chipset Manufacturer: Intel
- With CPU: No
- Chipset: Intel H81
- Application: Desktop
- Socket Type: LGA 1150
- Brand Name: APWIKOGER
- Origin: Mainland China
The United States customers attention:
Thank you for reading this post, don't forget to subscribe!When you select "Ship From United States", the following addresses will not provide delivery service: Hawaii, Alaska, Puerto Rico, Guam, APO, DPO, FPO, etc. Recommend you to choose "Ship From China".Thank you！！！
Clientes de España atención:
Cuando selecciona "Enviar desde España", el servicio de entrega no está disponible en los siguientes códigos postales:
35000-35999
38000-38999
Se recomienda que elija "Enviar desde China". ¡Gracias! ! !
H81 Computer Motherboard Support SATA 3.0 2.0 Micro-ATX LGA1150 Desktop Computer Mainboard PCI Express X16 X1 M.2 Nvme/NGFF Slot
Feature:

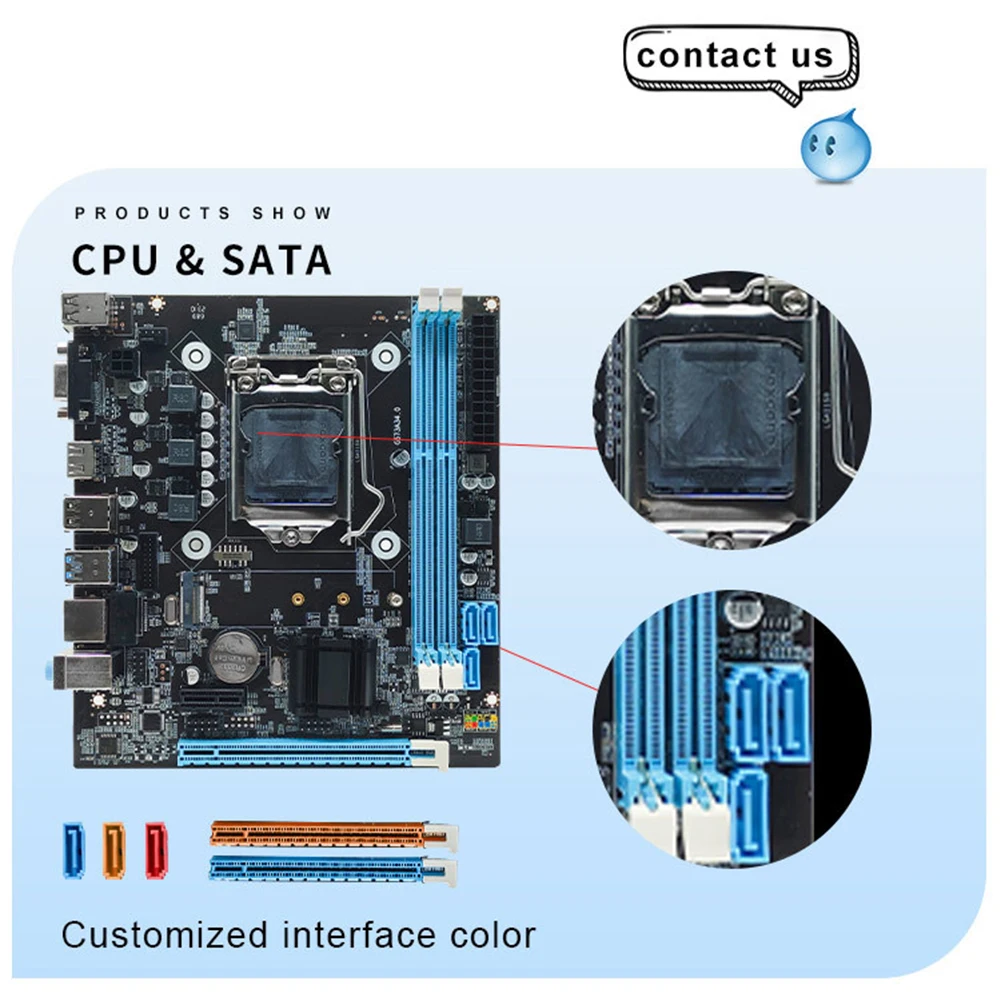

1.CPU Compatibility: This desktop motherboard supports Intel’s fourth-generation (Haswell architecture) 22nm CPUs, including Intel Core i3, i5, and i7 processors. It supports LGA1150 socket.
2.Chipset: The computer motherboard uses the Intel H81 Express chipset, providing stable performance and reliability.
3.Memory Support: The motherboard has two 240-pin DDR3 SDRAM slots with a maximum capacity of 16GB. It supports dual-channel DDR3 memory with speeds up to 1066/1333/1600 MHz.

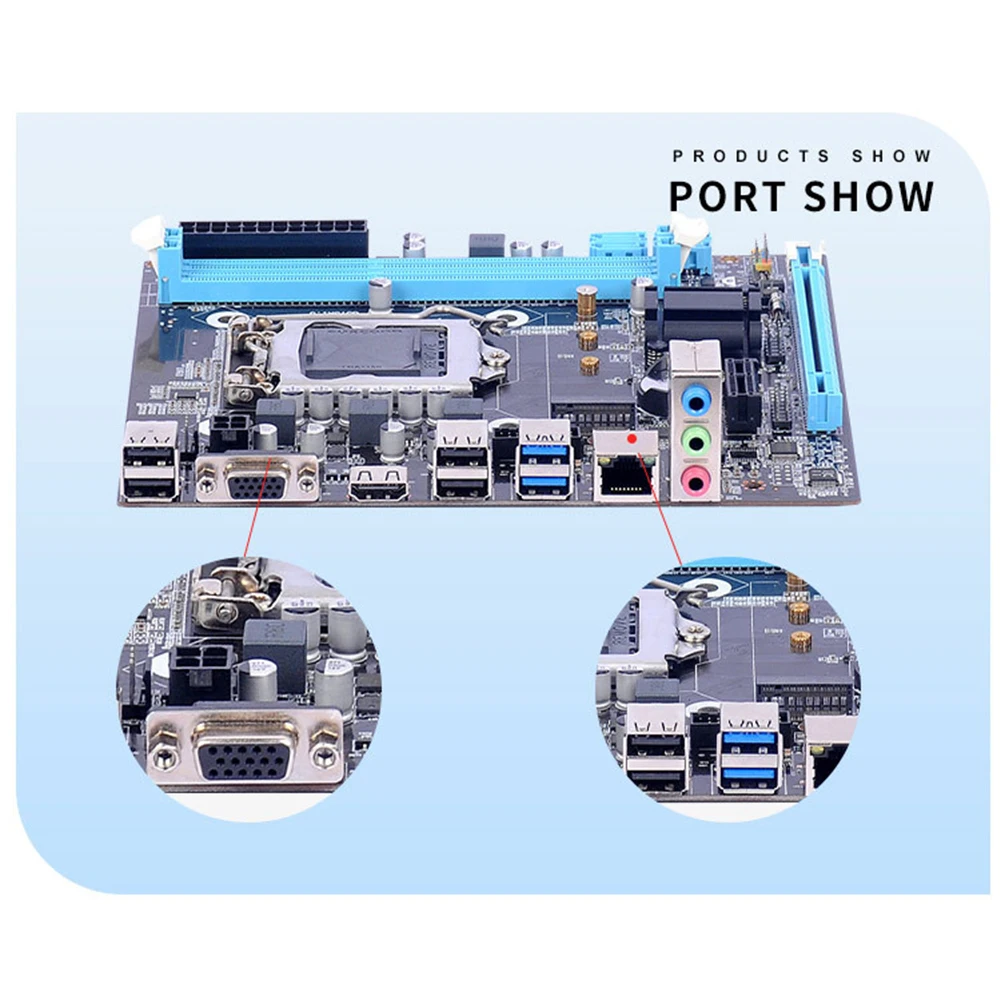

4.I/O Interfaces: The desktop computer mainboard provides multiple I/O interfaces, including 4 USB 2.0 interfaces, 2 USB 3.0 interfaces, 1 VGA port, 1 HDMI-Compatible port, 1 RJ45 port, and 1 3-in-1 audio interface (line in/line out/microphone).
5.Storage and Expansion Slots: The PC main board has 2 SATA 2.0 (3GB/s) ports and 2 SATA 3.0 (6GB/s) ports, allowing you to connect multiple storage devices. The expansion slots include 1 PCI Express x16 slot, 1 PCI Express x1 slot, and 1 M.2 slot that supports NVMe and NGFF interfaces.

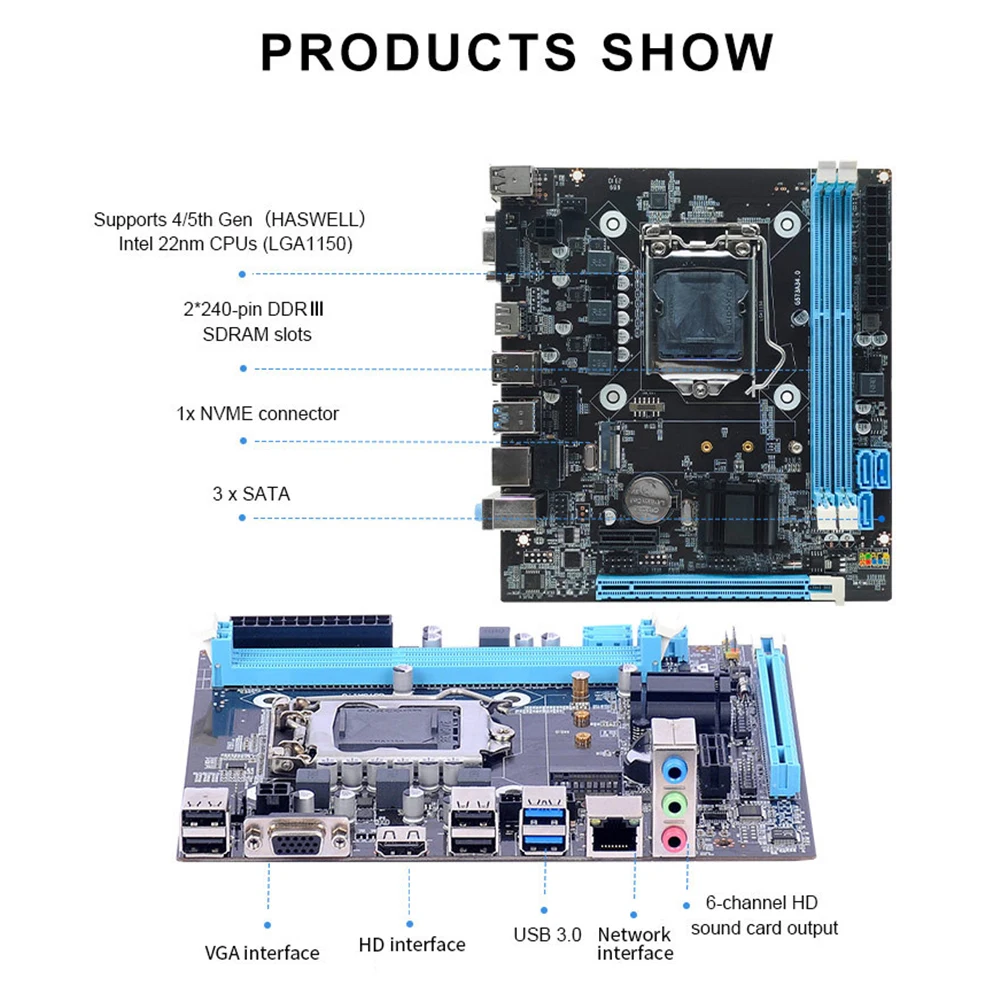

Specification:
Application: Desktop
Form Factor: Micro-ATX
CPU: Supports/54th Gen (HASWELL) Intel 22nm CPU (LGA1150)
Chipset: Intel H81 Express Chipset
Memory: 2*240-pin DDR3 SDRAM slot; memory up to 16GB; support dual-channel DDR3 1066/1333/1600 MHZ
I/O ports: 4xUSB2.0; 2xUSB3.0; 1 VGA port; 1 HDMI-Compatible port; 1x RJ45 port; 1x 3-in-1 Audio port(line in/line out/MIC in)
Onboard interface: 1x 24-pin ATX power connector; 1x 4-pin ATX 12V power connector; 2x USB port, can support 4*USB 2.0; 1x F-AUDIO port; 1x F-PANEL connector; 1x F-SPEAKER connection connector; 1 fan connector; 1x LPC-DEBUG connector

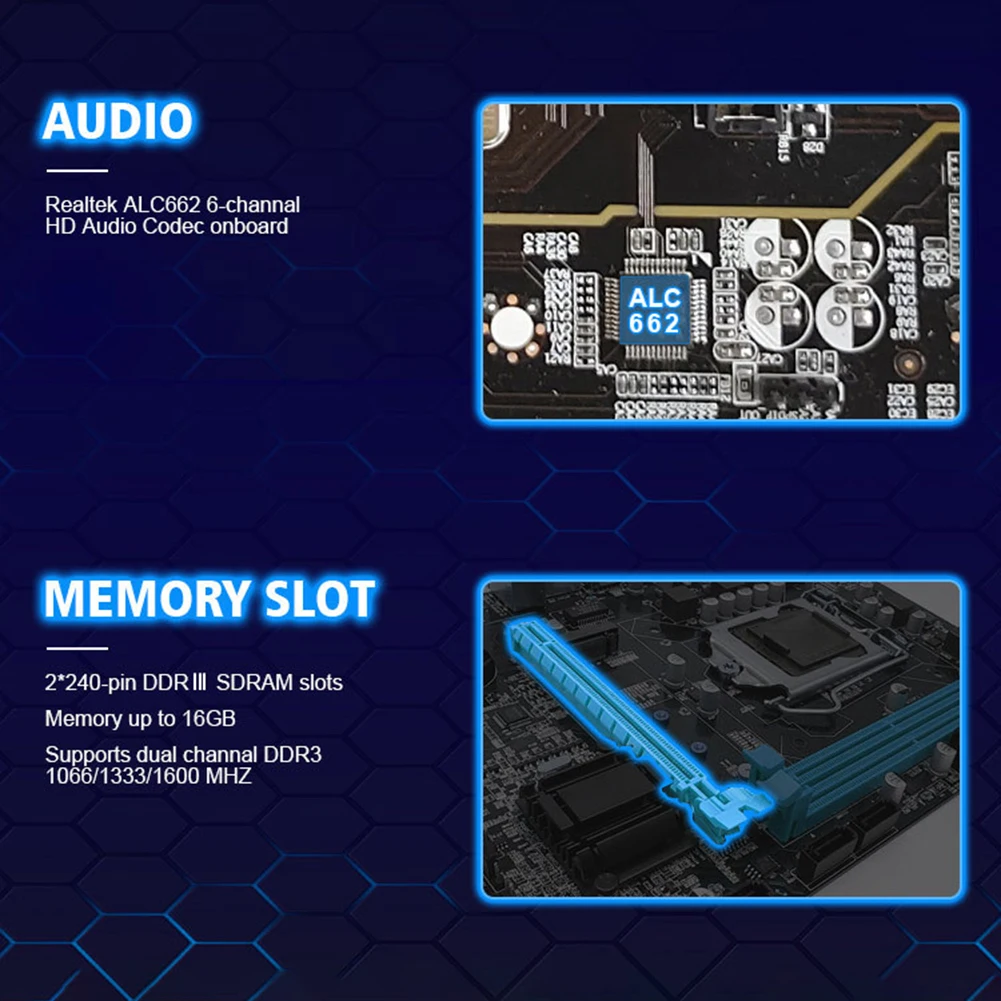

Integrated audio: Onboard Realtek ALC 6-channel HD Audio Codec; Provide front audio interface; Provide front stereo microphone interface
Storage: 2 x SATA 2.0 (3GB/s) ports, 2 x SATA 3.0 (6GB/s) ports;

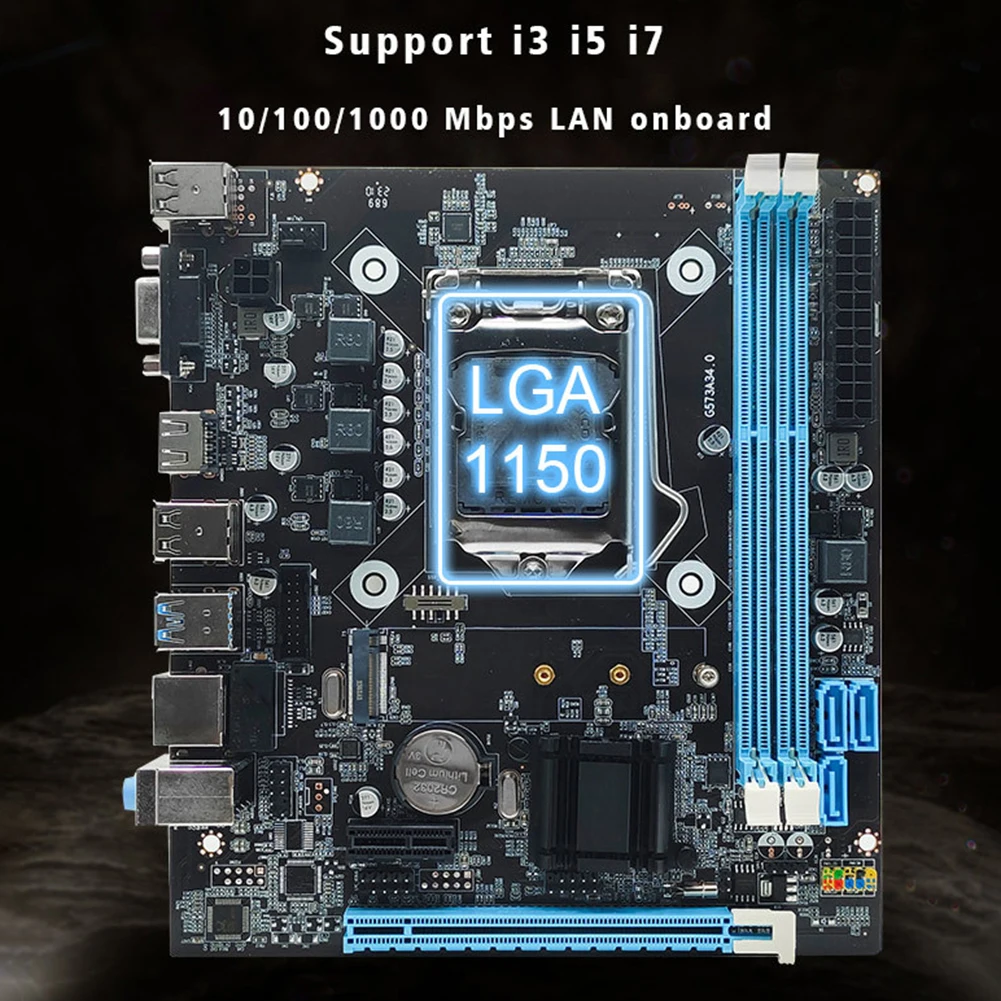

Integrated lan: Realtek 10/100 Mbps LAN onboard

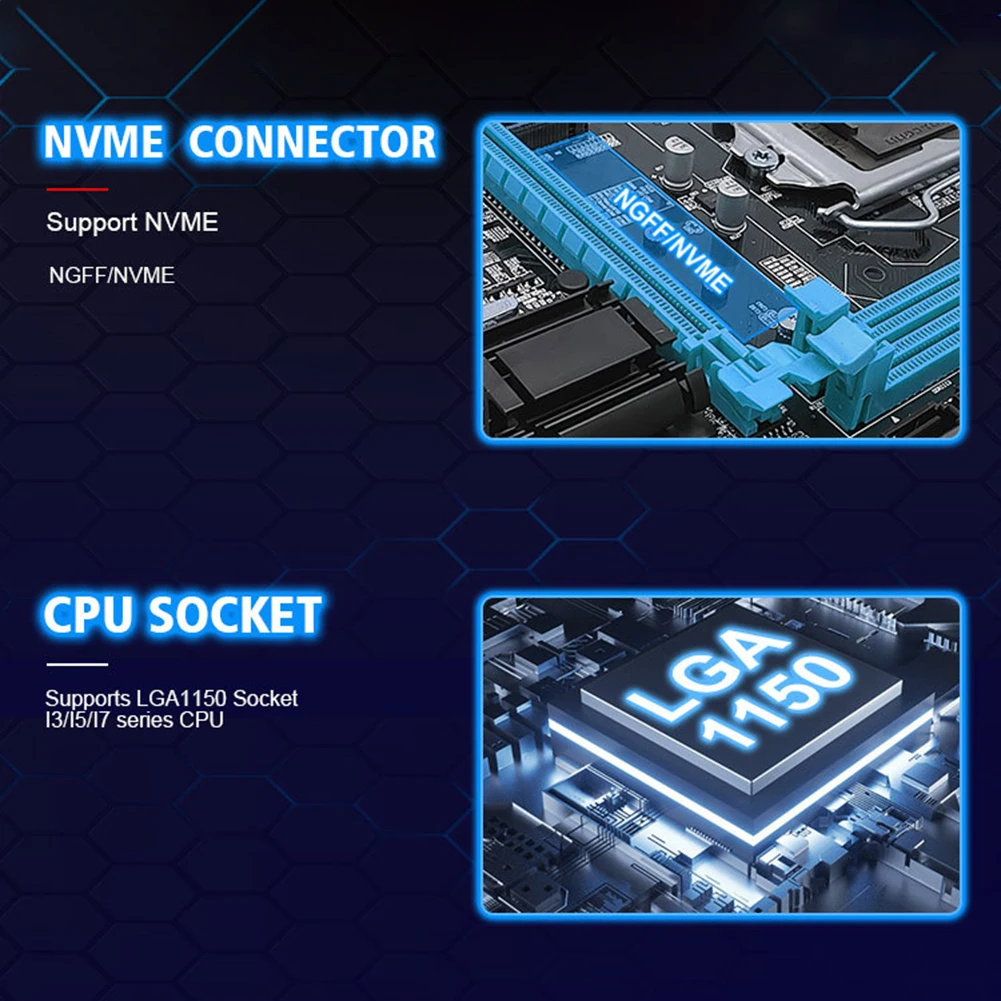

Expansion slots: 1x PCI Express x16 slot; 1x PCI Express x1 slot; 1 x M.2 Nvme/NGFF slot

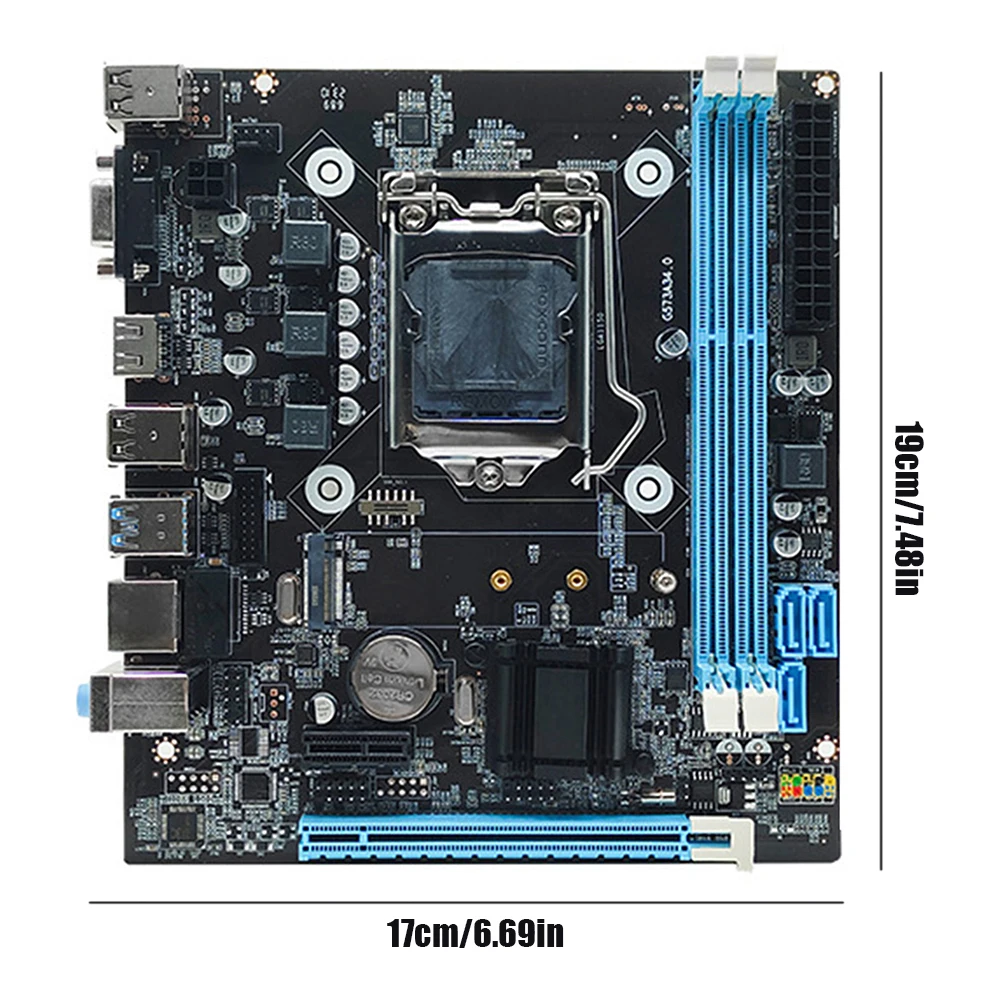

Size: About 17x19cm/6.69×7.48in
Note:
Due to the different monitor and light effect, the actual color of the item might be slightly different from the color showed on the pictures. Thank you!
Please allow 1-2cm measuring deviation due to manual measurement.
Packages:
1 x Motherboard
1 x Baffle
1 x SATA Data Cable
